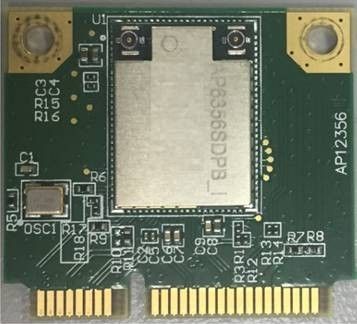

ENL-B4356I(AP12356_I) is a high performance 802.11ac/a/b/g/n dual band 2T2R Industrial Grade (-40°C to +85°C) WiFi with low power consumption half mini PCI-e module (WiFi 5) and with Bluetooth Version:5.0 via USB. This module is a highly integrated wireless local area network (WLAN) solution to let users enjoy the digital content through the latest wireless technology without using the extra cables and cords. It works in Windows, Linux and android operation system.
It can achieve up to a speed of 867Mbps with dual stream in 802.11n to connect the wireless LAN. In addition, all the rates specified in IEEE 802.11ac/a/b/g/n are supported. The integrated module provides PCI-e interface for WiFi.
ENL-B4356I(AP12356_I) implements highly sophisticated enhanced collaborative coexistence hardware mechanisms and algorithms that ensure that WLAN collaboration is optimized for maximum performance.
testing
Wi-Fi Protocol
IEEE 802.11 ac/a/b/g/n
Interface
Form Factor : Half Size Mini PCIE card
Electrical Signal: Wi-Fi : PCIE / Bluetooth : USB
Data Stream
2 data streams with 2 HMF4 RF connectors
Operating Frequency
2.400 GHz ~ 2.497 GHz (2.4GHz ISM Band)
4.900 GHz ~ 5.845 GHz (5.0GHz ISM Band)
*Subject to local regulations
Deminsion (mm)
29.85(±0.15) x 26.65(±0.15) x 2.64(±0.2) mm
Operating Voltage
DC 3.3V
Operating Temperature Range
-40~ 85°C
Driver
Andriod/Linux/Windows
Power – TX
Sensitivity – RX
Wi-Fi
802.11b /11Mbps : 16 dBm ± 1.5 dB
802.11g /54Mbps : 15 dBm ± 1.5 dB
802.11n /MCS7 : 14 dBm ± 1.5 dB
802.11a /54Mbps : 13 dBm ± 1.5 dB
802.11an /MCS7 : 12 dBm ± 1.5 dB
802.11ac /MCS9 : 10 dBm ± 1.5 dB
802.11b /11Mbps : -84 dBm (Typical)
802.11g /54Mpbs : -73dbm (Typical)
802.11n /MCS7 : -68dbm (Typical)
802.11a /54Mbps : -69dBm (Typical)
802.11an /MCS7 : -67dBm (Typical)
802.11ac /MCS9 : -57 dBm (Typical)
Bluetooth
7dbm typical (Class1.5)
@ BER=0.01% for π/4-DQPSK (2Mbps) : -78dbm
USA
EU Region
Japan
Canada
Above Certifications are under evaluation, please contact us for further information.
