802.11ac Dual-Band Solution

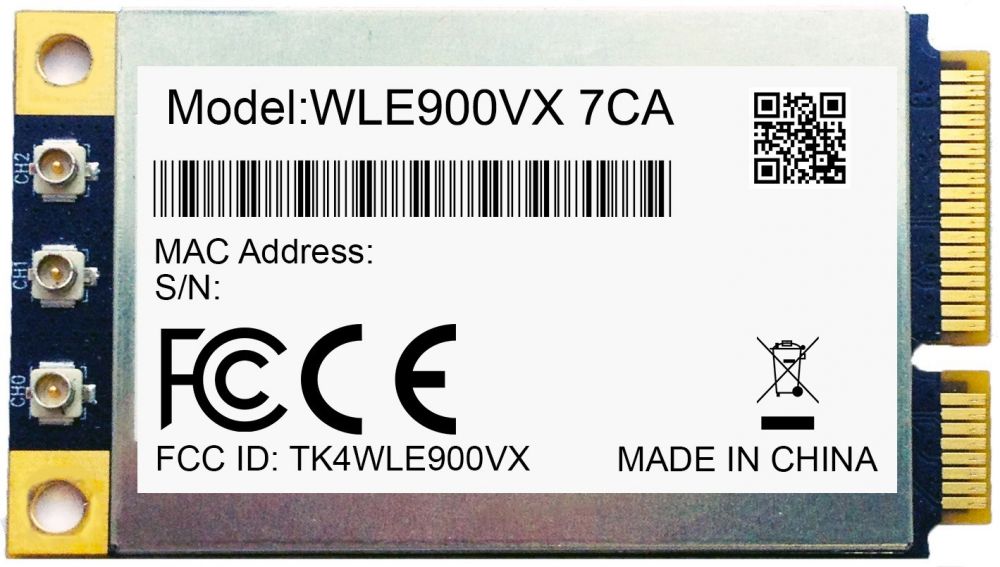

ENL-Q9890CI (85C)(WLE900VX-I(85C)) is an 802.11ac/b/g /n Dual-Band military temperature industrial grade Mini PCI express module (WiFi 5) based on Qualcomm Atheros QCA9890-BR4B chipset. It supports 3T3R (3×3) technology, which runs up to 1.3Gbps. The ENL-Q9890CI (85C)(WLE900VX-I(85C)) supports 20/40/80MHz and 256-QAM to maximize bandwidth efficiency.
Higher throughput for Enterprise Networking
Adopting the latest WiFi 5 WiFi Module solution, ENL-Q9890CI (85C)(WLE900VX-I(85C)) is ideal for higher throughput performance, reliability and range. It is reliable design for outdoor and rugged environments. High interference immunity for Wi-Fi congested environment and regulatory modular certifications to expedite system integration.
Secure Wireless Connection
Incorporated with advanced security encryption, such as WEP, WPA, WPA2, WPS, and 802.1x, it helps prevent users’ devices from malicious attacks.
Wi-Fi Protocol
IEEE 802.11ac/a/b/g/n
Interface
Mini PCI Express 1.1 Standard
Data Stream
3 data streams with 3 UFL connector
Operating Frequency
2.412 ~ 2.472 GHz
4.920 ~ 5.825 GHz
Deminsion (mm)
50.95 x 30 x 3.2 mm
Operating Voltage
3.3V DC
Operating Temperature Range
-40ºC to 85ºC
Chipset Offical Driver
Avaliable by requested.
Power – TX
Sensitivity – RX
Wi-Fi
11b@CCK 11Mbps：20dBm
11g@OFDM 54Mbps：18dBm
11n@MCS7_HT20：16dBm
11n@MCS7_HT40：16dBm
11a@OFDM 54Mbps：15dBm
11n/ac@VHT20@MCS8：13dBm
11n/ac@VHT40@MCS9：13dBm
11ac@VHT80@MCS9：13dBm
11b@CCK 11Mbps：-90dBm
11g@OFDM 54Mbps：-80dBm
11n@MCS7_HT20：-76dBm
11n@MCS7_HT40：-73dBm
11a@OFDM 54Mbps：-80dBm
11n/ac@VHT20@MCS8：-71dBm
11n/ac@VHT40@MCS9：-67dBm
11ac@VHT80@MCS9：-66dBm
USA
EU Region
Japan
Canada
Above Certifications are under evaluation, please contact us for further information.
