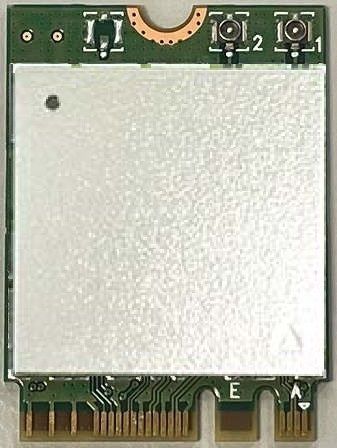

ENL-R8852CE is an 802.11 ax/ac/a/b/g/n Dual-Band Concurrent WiFi+Bluetooth M.2 (Type 2230) module (WiFi 6E) based on Realtek RTL8852CE chipset, It supports Multiple drivers (Windows/ Linux/Andriod) for various platform. This module supports MU-MIMO two steams on dual band 2.4GHz and 5GHz/6Ghz operating and incorporates the latest Bluetooth 5.3. Maximum PHY data rate up to 286.8 Mbps using 20MHz bandwidth, 573.5Mbps using 40MHz bandwidth,1201Mbps using 80MHz bandwidth and 2402Mbps using 160MHz.
The ENL-R8852CE solution to let users enjoy the high digital content through the latest wireless technology without using cables and cords. ENL-R8852CE combines a WLAN MAC, a 2T2R capable WLAN baseband, and RF in a single chip. ENL-R8852CE module enables a high performance, cost effective, low power, compact solution that easily fits in the PCI Express and USB M.2 2230 A-E Key module which is Incorporated with advanced security encryption WPA/WPA2, WPS, WPA3, and 802.1x, it will prevent user’s devices from malicious attacks.
The ENL-R8852CE is with multi-OS supporting from chipset vendors, not using the open source, it can ensure supporting available.
Wi-Fi Protocol
IEEE 802.11 ax/ac/a/b/g/n
Bluetooth version
Bluetooth 5.3
Data Stream
Dual MHF4 Antenna Connectors
Operating Frequency
2412-2484MHz (2.4G band)
4905-5915MHz (5G band)
5930-7110MHz (6G band)
Operating Temperature Range
Operating Temperature: -10ºC to 70ºC
Storage Temperature: -40ºC to 85ºC
Driver
Windows/Linux/Andriod
Chipset Offical Driver
Avaliable by requested.
Power – TX
Sensitivity – RX
Wi-Fi
802.11a:
18 dBm@54Mbps
802.11b:
19 dBm@11Mbps
802.11g:
18 dBm@54Mbps
802.11n(2.4GHz):
20MHz:
17 dBm@MCS7
40MHz:
17 dBm@MCS7
802.11n(5GHz):
20MHz:
17 dBm@MCS7
40MHz:
17 dBm@MCS7
802.11ac:
80MHz:
15 dBm@MCS9
802.11ax(2.4GHz):
40MHz:
13 dBm@MCS11
802.11ax(5GHz):
160MHz:
13 dBm@MCS11
802.11ax(6GHz):
160MHz:
11 dBm@MCS11
802.11a:
-65dBm@54Mbps
802.11b:
-76dBm@11Mbps
802.11g:
-65dBm@54Mbps
802.11n(2.4GHz):
40MHz
-61dBm@MCS7
802.11n(5GHz):
40MHz
-61dBm@MCS7
802.11ac:
80MHz
-51 dBm@MCS9
802.11ax(2.4GHz):
40MHz
-49 dBm@MCS11
802.11ax(5GHz):
160MHz
-46 dBm@MCS11
802.11ax(6GHz):
160MHz
-46 dBm@MCS11
Bluetooth
BR, EDR, LE: 4dBm ±2dB ; Class I Device
< 0.1% BER at -70dBm
USA
EU Region
Japan
Canada
World-wide certificates are available, please contact us for details.
