ENL-Q7851M2

ENL-Q7851M2

WiFi7 11be Tri-Band 2x2 and Bluetooth 5.4 M.2 2230 KeyE Combo Module
Model No.
NCM865
Chipset Vendor
Qualcomm
Chipset part no.
WCN7851
Electrical Interface
WLAN@PCIE / BT@USB (BT@UART by request)
OS support
Linux/Windows

TAG BY

#PICE #Commercail Grade #WiFi 7 #M.2 card #Linux #Windows #2*2 #General Purpose Wireless Modules

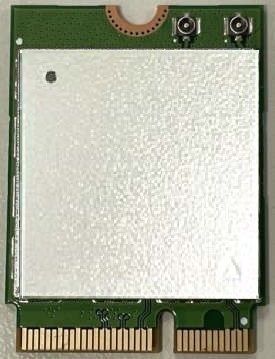

ENL-Q7851M2(NCM865) is M.2 type 2230 E key NCM865 WLAN+BT Combo Module.

This M.2 type 2230 module design is based on the Qualcomm WCN7851 SOC chipset. The WCN7851 is a single-chip wireless local area network (WLAN) and Bluetooth (BT) combo solution to support 2x2 MIMO with IEEE802.11a/b/g/n/ac/ax/be WLAN standards and BT 5.4.

About functions:

1. Supports WLAN 20/40MHz at 2.4GHz and 20/40/80/160 MHz at 5GHz/ up to 320 MHz at 6 GHz

2. Supports 2x2 MU-MIMO

3. Dual band simultaneous (DBS) up to 2.4 GHz 2x2 40 MHz + 5 GHz 2x2 160 MHz /6 GHz 2x2 160 MHz

4. High-Band Simultaneous (HBS) with dual MAC, up to 5.8 Gbps data rate (2x2 5 GHz 160MHz + 2x2 6 GHz 160 MHz with 4K QAM modulation)

5. Up to 4096QAM

6. Dynamic Frequency selection (DFS, radar detection)

7. Supports PCIe Gen3 2-lane interface for WLAN

8. Supports BT5.4 and backward-compatible with previous BT standards

9. USB1.1 full speed interface for BT

10. GP/HF compliance


STANDARD
Wi-Fi Protocol
IEEE 802.11 be/ax/ac/a/b/g/n
Bluetooth version
Bluetooth 5.4 LE
Interface
Form Factor：M.2 2230-E

Electrical Signal：Wi-Fi：PCIE / Bluetooth：USB
RADIO
Data Stream

Dual I-PEX Antenna Connectors

Operating Frequency
2.4~2.4835GHz (2.4G band)

5.15~5.35GHz, 5.47~5.85GHz, 5.85~5.925GHz (5G band)

5.93GHz~7.11GHz (6G band)
Chipset
Qualcomm
SIZE
Deminsion (mm)
30mm x 22mm x 2.38mm
Wight (gw)
ENVIROMENTAL
Operating Voltage
3.3V
Operating Temperature Range
Operating Temperature: -30 ~ +80 ºC

Storage Temperature: -40 ~ +85 ºC
SOFTWARE
Driver
Windows/Linux
Chipset Offical Driver
Avaliable by requested.
POWER AND SENSITIVITY
Power – TX
Sensitivity – RX
Wi-Fi

2.4G:

CCK:_1M:18dBm

CCK:_11M:18dBm

OFDM_ 6M:18dBm

OFDM_ 54M:16dBm

11n_HT20_MCS0:18dBm

11n_HT20_MCS7:16dBm

11n_HT40_MCS0:16dBm

11n_HT40_MCS7:13.5dBm

11ac VHT20 MCS0:18dBm

11ac VHT20 MCS9:15.5dBm

11ac VHT40 MCS0:16dBm

11ac VHT40 MCS9:12.5dBm

11ax HE20 MCS0:18dBm

11ax HE20 MCS11:14.5dBm

11ax HE20 MCS13:13dBm

11ax HE40 MCS0:16dBm

11ax HE40 MCS11:12.5dBm

11ax HE40 MCS13:11.5dBm

11be EHT20 MCS0:18dBm

11be EHT20 MCS11:14.5dBm

11be EHT20 MCS13:13dBm

11be EHT40 MCS0:16dBm

11be EHT40 MCS11:12.5dBm

11be EHT40 MCS13:11.5dBm

5G: (<5400) UNII1-2A

OFDM_ 6M:16.5dBm

OFDM_ 54M:15dBm

11n_HT20_MCS0:16.5dBm

11n_HT20_MCS7:14dBm

11n_HT40_MCS0:16dBm

11n_HT40_MCS7:13.5dBm

11ac_VHT20_MCS0:16.5dBm

11ac_VHT20_MCS9:13dBm

11ac_VHT40_MCS0:16dBm

11ac_VHT40_MCS9:12.5dBm

11ac_VHT80_MCS0:15.5dBm

11ac_VHT80_MCS9:12dBm

11ax_HE20 _MCS0:16.5dBm

11ax_HE20 _MCS11:12dBm

11ax_HE20 _MCS13:11dBm

11ax_HE40_MCS0:16dBm

11ax_HE40_MCS11:11.5dBm

11ax_HE40_MCS13:11dBm

11ax_HE80_MCS0:15.5dBm

11ax_HE80_MCS11:11.5dBm

11ax_HE80_MCS13:11dBm

11ax_HE160_MCS0:15.5dBm

11ax_HE160_MCS11:11.5dBm

11ax_HE160_MCS13:11dBm

11be_EHT20 _MCS0:16.5dBm

11be_EHT20 _MCS11:12dBm

11be_EHT20 _MCS13:11dBm

11be_EHT40_MCS0:16dBm

11be_EHT40_MCS11:11.5dBm

11be_EHT40_MCS13:11dBm

11be_EHT80_MCS0:15.5dBm

11be_EHT80_MCS11:11.5dBm

11be_EHT80_MCS13:11dBm

11be_EHT160_MCS0:15.5dBm

11be_EHT160_MCS11:11.5dBm

11be_EHT160_MCS13:11dBm

5G: (>5400) UNII2C-4

OFDM_ 6M:16.5dBm

OFDM_ 54M:15dBm

11n_HT20_MCS0:16.5dBm

11n_HT20_MCS7:14dBm

11n_HT40_MCS0:16dBm

11n_HT40_MCS7:13.5dBm

11ac_VHT20_MCS0:16.5dBm

11ac_VHT20_MCS9:13dBm

11ac_VHT40_MCS0:16dBm

11ac_VHT40_MCS9:12.5dBm

11ac_VHT80_MCS0:15.5dBm

11ac_VHT80_MCS9:12dBm

11ax_HE20 _MCS0:16.5dBm

11ax_HE20 _MCS11:12dBm

11ax_HE20 _MCS13:11dBm

11ax_HE40_MCS0:16dBm

11ax_HE40_MCS11:11.5dBm

11ax_HE40_MCS13:11dBm

11ax_HE80_MCS0:15.5dBm

11ax_HE80_MCS11:11.5dBm

11ax_HE80_MCS13:11dBm

11ax_HE160_MCS0:15.5dBm

11ax_HE160_MCS11:11.5dBm

11ax_HE160_MCS13:11dBm

11be_EHT20 _MCS0:16.5dBm

11be_EHT20 _MCS11:12dBm

11be_EHT20 _MCS13:11dBm

11be_EHT40_MCS0:16dBm

11be_EHT40_MCS11:11.5dBm

11be_EHT40_MCS13:11dBm

11be_EHT80_MCS0:15.5dBm

11be_EHT80_MCS11:11.5dBm

11be_EHT80_MCS13:11dBm

11be_EHT160_MCS0:15.5dBm

11be_EHT160_MCS11:11.5dBm

11be_EHT160_MCS13:11dBm

6G:

11ax_HE20 _MCS0:15.5dBm

11ax_HE20 _MCS11:11dBm

11ax_HE20 _MCS13:10dBm

11ax_HE40_MCS0:15dBm

11ax_HE40_MCS11:10.5dBm

11ax_HE40_MCS13:10dBm

11ax_HE80_MCS0:14.5dBm

11ax_HE80_MCS11:10.5dBm

11ax_HE80_MCS13:10dBm

11ax_HE160_MCS0:14.5dBm

11ax_HE160_MCS11:10.5dBm

11ax_HE160_MCS13:10dBm

11be_EHT20 _MCS0:15.5dBm

11be_EHT20 _MCS11:11dBm

11be_EHT20 _MCS13:10dBm

11be_EHT40_MCS0:15dBm

11be_EHT40_MCS11:10.5dBm

11be_EHT40_MCS13:10dBm

11be_EHT80_MCS0:14.5dBm

11be_EHT80_MCS11:10.5dBm

11be_EHT80_MCS13:10dBm

11be_EHT160_MCS0:14.5dBm

11be_EHT160_MCS11:10.5dBm

11be_EHT160_MCS13:10dBm

11be_EHT320_MCS0:13.5dBm

11be_EHT320_MCS11:9.5dBm

11be_EHT320_MCS13:9dBm

2.4G: @PER<=10%.

CCK_11M: Max.-89dBm@PER<=8% OFDM_54M: Max.-75.5dBm

11n_HT20_MCS7: Max.-75dBm

11n_HT40_MCS7: Max.-72.5dBm

11ac_VHT20_MCS9: Max.-69.5dBm

11ac_VHT40_MCS9: Max.-67dBm

11ax_HE20_MCS11: Max.-63dBm

11ax_HE40_MCS11: Max.-60.5dBm

11be_EHT20_MCS11: Max.-63dBm

11be_EHT40_MCS11: Max.-60.5dBm

11be_EHT20_MCS13: Max.-56dBm

11be_EHT40_MCS13: Max.-54.5dBm

5G: @PER<=10%.

OFDM_54M: Max.-74.5dBm

11n_HT20_MCS7: Max.-74dBm

11n_HT40_MCS7: Max.-71.5dBm

11ac_VHT20_MCS8: Max.-70.5dBm

11ac_VHT40_MCS9: Max.-66dBm

11ac_VHT80_MCS9: Max.-62.5dBm

11ax_HE20_MCS11: Max.-62dBm

11ax_HE40_MCS11: Max.-59.5dBm

11ax_HE80_MCS11: Max.-56.5dBm

11ax_HE160_MCS11: Max.-53.5dBm

11ax_HE80_MCS13: Max.-50dBm

11ax_HE160_MCS13: Max.-47.5dBm

11be_EHT20_MCS11: Max.-62dBm

11be_EHT40_MCS11: Max.-59.5dBm

11be_EHT80_MCS11: Max.-56.5dBm

11be_EHT160_MCS11: Max.-53.5dBm

11be_EHT20_MCS13: Max.-56dBm

11be_EHT40_MCS13: Max.-53.5dBm

11be_EHT80_MCS13: Max.-50.5dBm

11be_EHT160_MCS13: Max.-47.5dBm

6G: @PER<=10%.

11ax_HE20_MCS11: Max.-61dBm

11ax_HE40_MCS11: Max.-58.5dBm

11ax_HE80_MCS11: Max.-55.5dBm

11ax_HE160_MCS11: Max.-52.5dBm

11ax_HE80_MCS13: Max.-49dBm

11ax_HE160_MCS13: Max.-46.5dBm

11be_EHT20_MCS11: Max.-61dBm

11be_EHT40_MCS11: Max.-58.5dBm

11be_EHT80_MCS11: Max.-55.5dBm

11be_EHT160_MCS11: Max.-52.5dBm

11be_EHT320_MCS11: Max.-50.5dBm

11be_EHT20_MCS13: Max.-55dBm

11be_EHT40_MCS13: Max.-52.5dBm

11be_EHT80_MCS13: Max.-49.5dBm

11be_EHT160_MCS13: Max.-46.5dBm

11be_EHT320_MCS13: Max.-44dBm

Bluetooth
BDR:14dBm, EDR:10dBm, BLE:5dBm/14dBm (BLE Tx power support 5dBm/14dBm by country or region)

1DH5: -90dBm@BER<=0.1.

2DH5: -89dBm@BER<=0.01

3DH5: -82dBm@BER<=0.01

1LE: -94dBm@PER<=30.8

　　


USA


EU Region


Japan


Canada

World-wide Certificates are available, please contact us for details.
