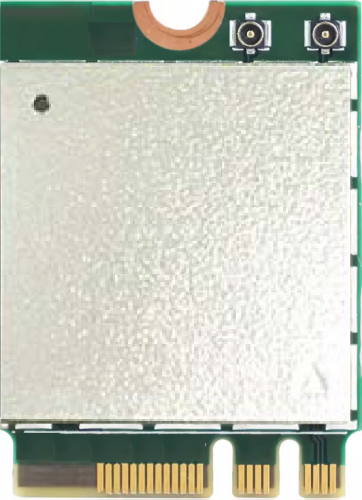

The ENL-M7921M2 is a 802.11a/b/g/n/ac/ax and Bluetooth v5.2 combo PCIE Module. This Card is based on MediaTek MT7921LEN chipset. It offers feature-rich wireless connectivity at high standards, and delivering reliable throughput from an extended distance.
Features:
PCIe device fully compliant to PCIe v2.1 specification for WIFI data transmission.
USB device fully compliant to USB v2.0 specification for Bluetooth data transmission.
Support 20MHz, 40 MHz bandwidth in 2.4GHz band.
Support 20MHz, 40 MHz, 80 MHz bandwidth in 5GHz band.
Support MU-MIMO RX.
Support uplink MU-OFDMA TX and downlink MU-OFDMA RX.
Support STBC, LDPC, TX Beamformer and RX Beamforming.
IEEE 802.11 d/e/h/i/j/k/mc/r/v/w support.
Security support for WFA WPA/WPA2/WPA3 personal, WPS2.0, WAPI.
QoS support of WFA WMM, WMM PS.
Bluetooth v5.2 with BLE (BT low energy).
HSF compliant.
Wi-Fi Protocol
IEEE 802.11 ax/ac/a/b/g/n
Bluetooth version
Bluetooth 5.2
Interface
Form Factor：M.2 Type 2230-S3-A-E
Operating Frequency
2400 ～ 2483.5MHz (2.4G band)
5.15~5.25GHz； 5.25~5.35GHz； 5.47~5.725GHz；5.725~5.825GHz； (5G band)
Deminsion (mm)
22mm x 30mm x 2.4mm
Operating Temperature Range
Operating Temperature: -10ºC to 70ºC
Storage Temperature: -40ºC to 80ºC
Chipset Offical Driver
Avaliable by requested.
Power – TX
Sensitivity – RX
Wi-Fi
2.4GHz Band
11b: 18.5±2 dBm at 11Mbps
11g: 15±2 dBm at 54Mbps
11n: HT20 15±2dBm at MCS7
11n: HT40 14±2dBm at MCS7
11ac: 14±2dBm at VHT20 MCS8
11ac: 13±2dBm at VHT40 MCS9
11ax: 13±2dBm at HE20 MCS11
11ax: 13±2dBm at HE40 MCS11
5GHz Band
11a: 15±2 dBm at 54Mbps
11n: HT20 15±2dBm at MCS7
11n: HT40 14±2dBm at MCS7
11ac: 14±2dBm at VHT20 MCS8
11ac: 14±2dBm at VHT40 MCS9
11ac: 13±2dBm at VHT80 MCS9
11ax: 13±2dBm at HE20 MCS11
11ax: 13±2dBm at HE40 MCS11
11ax: 12±2dBm at HE80 MCS11
2.4GHz:
11b: -83 dBm for 11Mbps
11g: -71 dBm for 54Mbps
11n HT20: -68dBm at MCS7
11n HT40: -66dBm at MCS7
11ac VHT20: -64dBm at MCS8
11ac VHT40: -58dBm at MCS9
11ax HE20: -57dBm at MCS11
11ax HE40: -55dBm at MCS11
5GHz:
11a: -71 dBm for 54Mbps
11n HT20: -68dBmat MCS7
11n HT40: -66dBm at MCS7
11ac VHT20: -64dBm at MCS8
11ac VHT40: -58dBm at MCS9
11ac VHT80: -55dBm at MCS9
11ax HE20: -57dBm at MCS11
11ax HE40: -55dBm at MCS11
11ax HE80: -50dBm at MCS11
Bluetooth
Bluetooth:
@BER=0.1% FOR GFSK(1Mbps): -86dBm
@BER=0.01% FORπ/4-DQPSK(2Mbps): -86dBm
@BER=0.01% FOR 8DPSK(3Mbps): -80dBm
@PER=30.8% FOR BLE: -90dBm
USA
EU Region
Japan
Canada
Above Certifications are under evaluation, please contact us for further information.
