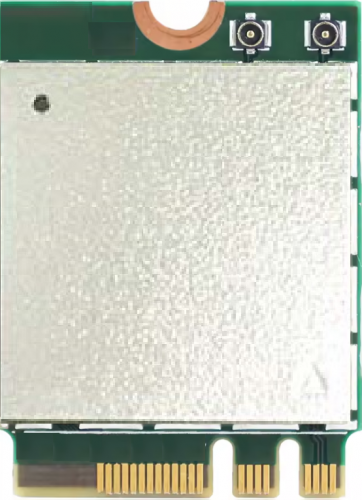

The ENL-M7922M2 is a highly integrated single-chip that supports 2x2 802.11ax solutions with Multi-user MIMO (Multiple-Input, Multiple-Output), Wireless LAN (WLAN) PCI Express network interface controller, with integrated Bluetooth 5.2 USB interface controller. It combines a WLAN MAC, a 2T2R capable WLAN baseband, and RF in a single chip.
The ENL-M7922M2 integrates MediaTek MT7922A22M SoC with TDD Bluetooth function shared with a Wi-Fi antenna.
MT7922A22M is a highly integrated single chip that features a low power 2x2 11a/b/g/n/ac/ax dual-band Wi-Fi 6E subsystem and a Bluetooth subsystem. The Wi-Fi subsystem contains the 802.11a/b/g/n/ac/ax radio, baseband and MAC that are designed to meet both the low-power and high-throughput requirements.
MT7922A22M has a 32-bit RISC MCU that handles Wi-Fi and Bluetooth tasks. The Bluetooth subsystem contains the Bluetooth radio, baseband, and link controller, and uses the 32-bit RISC MCU for the Bluetooth protocols.
Wi-Fi Protocol
IEEE 802.11 ax/ac/a/b/g/n
Bluetooth version
Bluetooth 5.2
Interface
Form Factor：M.2 2230-AE
Data Stream
Antenna – I-PEX MHF4 Connector
Operating Frequency
2.4~2.4835GHz (2.4G band)
5.15~5.35GHz,5.47~5.85GHz (5G band)
5.93GHz~7.11GHz (6G band)
Deminsion (mm)
22mm x 30mm x 2.35mm
Operating Temperature Range
Operating Temperature: 0ºC to 70ºC
Storage Temperature: -40ºC to 85ºC
Chipset Offical Driver
Avaliable by requested.
Power – TX
Sensitivity – RX
Wi-Fi
2.4GHz Band (+/-1.5dBm):
CCK_11M: 20.5dBm.
OFDM_54M: 17dBm,
11n_HT20_MCS7: 16.5dBm
11n_HT40_MCS7: 16dBm
11ax_HE_20 _MCS0:18.5dBm
11ax_HE_20 _MCS7:16.5dBm
11ax_HE_20 _MCS11:14dBm
11ax_HE_40 _MCS0:18.5dBm
11ax_HE_40 _MCS7:16dBm
11ax_HE_40 _MCS11:13.5dBm
5GHz Band (+/-1.5dBm):
OFDM_ 54M:17dBm
11n_HT20_MCS7: 16dBm
11n_HT40_MCS7: 16dBm
11ac_VHT20_MCS0 18.5dBm
11ac_VHT20_MCS9 15dBm
11ac_VHT40_MCS0 18.5dBm
11ac_VHT40_MCS9 15dBm
11ac_VHT80_MCS0 18.5dBm
11ac_VHT80_MCS9 15dBm
11ac_VHT160_MCS0 18dBm
11ac_VHT160_MCS9 15dBm
11ax_HE_20 _MCS0: 18.5dBm
11ax_HE_20 _MCS7:16dBm
11ax_HE_20 _MCS11:13dBm
11ax_HE_40 _MCS0:18.5dBm
11ax_HE_40 _MCS7:16dBm
11ax_HE_40 _MCS11:13dBm
11ax_HE_80 _MCS0: 18.5dBm
11ax_HE_80 _MCS7:16dBm.
11ax_HE_80 _MCS11:12.5dBm.
11ax_HE_160 _MCS0:18dBm.
11ax_HE_160 _MCS7:16dBm.
11ax_HE_160 _MCS11:12.5dBm.
6GHz: (+/-1.5dBm)
11ax_HE_20 _MCS0:16.5dBm.
11ax_HE_20 _MCS7:14dBm.
11ax_HE_20 _MCS11:11dBm.
11ax_HE_40 _MCS0:16.5dBm.
11ax_HE_40 _MCS7:14dBm.
11ax_HE_40 _MCS11:11dBm.
11ax_HE_80 _MCS0:16.5dBm.
11ax_HE_80 _MCS7:14dBm.
11ax_HE_80 _MCS11:10.5dBm.
11ax_HE_160 _MCS0:16dBm.
11ax_HE_160 _MCS7:14dBm.
11ax_HE_160 _MCS11:10.5dBm.
2.4GHz: @PER<=10%. xtagstartz/strong>
USA
EU Region
Japan
Canada
Above Certifications are under evaluation, please contact us for further information.
