ENL- R8922AEM2

Name: ENL- R8922AEM2
Brand: ENL- R8922AEM2
SKU: RTL8922AE
Availability: InStock

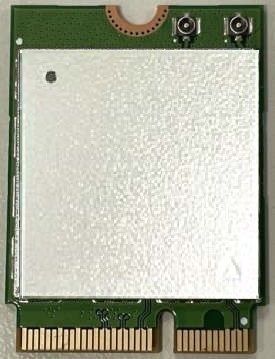

WiFi7 11be Tri-band 2Tx2R + BT5.4
M.2 Type 2230 WLAN Combo Module

Model No.

RTL8922AE

Chipset Vendor

Reaktek

Chipset part no.

RTL8922AE-CG

Electrical Interface

WLAN@PCIE/BT@USB

OS support

Linux/Windows

TAG BY

#PICE #Commercail Grade #WiFi 7 #M.2 card #Andriod #Linux #Windows #2*2 #General Purpose Wireless Modules

The Realtek RTL8922AE-CG is a highly integrated combo-chip that support 2-stream 802.11be solutions with Multi-user MIMO (Multiple-Input, Multiple-Output) with Wireless LAN (WLAN) PCI Express network interface controller with integrated Bluetooth 5 USB interface controller. It combines a WLAN MAC, a 2T2R capable WLAN baseband, and RF in a single chip. The RTL8922AE-CG provides a complete solution for a high-performance integrated wireless and Bluetooth device.

STANDARD

Wi-Fi Protocol

IEEE 802.11 be/ax/ac/a/b/g/n

Bluetooth version

Bluetooth 5.4 LE

Interface

Form Factor：M.2 2230-E

Electrical Signal：Wi-Fi：PCIE / Bluetooth：USB

RADIO

Data Stream

Dual I-PEX Antenna Connectors

Operating Frequency

2.402~2.480GHz (2.4G band)

5.15~5.85GHz (5G band)

5.925GHz~7.125GHz (6G band)

Chipset

Realtek

SIZE

Deminsion (mm)

30mm x 22mm x 2.15mm

Wight (gw)

ENVIROMENTAL

Operating Voltage

3.3V

Operating Temperature Range

Operating Temperature: 0 ~ +70 ºC

Storage Temperature: -55 ~ +125 ºC

SOFTWARE

Driver

Windows/Linux

Chipset Offical Driver

Avaliable by requested.

POWER AND SENSITIVITY

Power – TX

Sensitivity – RX

Wi-Fi

2.4G:

11b:_11M:20dBm

11g_ 54M:20dBm

11n_HT40_MCS7:20dBm

11ax HE40 MCS11:18dBm

11ax HE40 MCS12~13:16dBm

11be EHT40 MCS11:18dBm

11be EHT40 MCS12~13:16dBm

5G:

11a_54M:18dBm

11n_HT40_MCS7:18dBm

11ac_VHT80_MCS9:17dBm

11ax_HE160_MCS11:15dBm

11ax_HE160_MCS13:14dBm

11be_EHT160_MCS11:15dBm

11be_EHT160_MCS13:14dBm

6G:

11ax_HE20 _MCS7:16dBm

11ax_HE20 _MCS13:15dBm

11ax_HE40 _MCS7:16dBm

11ax_HE40 _MCS13:15dBm

11ax_HE80 _MCS9:16dBm

11ax_HE80 _MCS13:15dBm

11ax_HE160 _MCS11:14dBm

11ax_HE160 _MCS13:13dBm

11be_EHT20 _MCS7:16dBm

11be_EHT20 _MCS13:15dBm

11be_EHT40 _MCS7:16dBm

11be_EHT40 _MCS13:15dBm

11be_EHT80 _MCS9:16dBm

11be_EHT80 _MCS13:15dBm

11be_EHT160 _MCS11:14dBm

11be_EHT160 _MCS13:13dBm

2.4G: @PER<=10%.

CCK_11M: Max.-76dBm

OFDM_54M: Max.-65dBm

11n_HT40_MCS7: Max.-61dBm

11ax_HE40_MCS11: Max.-49dBm

11ax_HE40_MCS13: Max.-46dBm

11be_EHT40_MCS11: Max.-49dBm

11be_EHT40_MCS13: Max.-46dBm

5G: @PER<=10%.

11ax_HE160_MCS11: Max.-46dBm

11ax_HE160_MCS13: Max.-43dBm

11be_EHT160_MCS11: Max.-46dBm

11be_EHT160_MCS13: Max.-43dBm

6G: @PER<=10%.

11ax_HE160_MCS11: Max.-46dBm

11ax_HE160_MCS13: Max.-43dBm

11be_EHT160_MCS11: Max.-46dBm

11be_EHT160_MCS13: Max.-43dBm

USA

EU Region

Japan

Canada

Above Certifications are under evaluation, please contact us for further information.
