WiFi7 11be 2.4/5GHz 2x2 Dual Band Dual Concurrent M.2 A/E Key Radio Card Series

Model No.

ENL-QWKIDBS25

Chipset Vendor

Qualcomm

Chipset part no.

QCN6224/QCN9274-1

Electrical Interface

WLAN@PCIE

OS support

Linux

TAG BY

#PICE #Commercail Grade #Industrial Grade #WiFi 7 #M.2 card #Linux #Windows #2*2 #Wireless Modules for AP Application

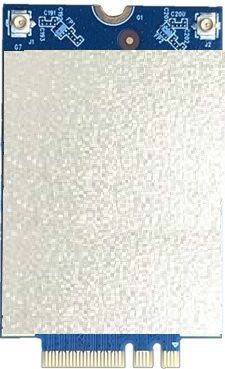

The ENL-QWKIDBS25 series are IEEE 802.11be(Wi-Fi7) 2x2 dual band dual concurrent compliant M.2 key A/E radio module with Qualcomm Waikiki SoC integrated. It can deliver up to 22dBm (2 streams) output power with a very compact dimension of 52mm(Length) x 32mm(Width) x 3mm (Height), making it a perfect Wi-Fi7 radio card WiFi, SDWAN/UTM and IOT(Internet Of Things) applications.

STANDARD

Wi-Fi Protocol

IEEE 802.11 be/ax/ac/a/b/g/n

Bluetooth version

N/A

Interface

Form Factor：M.2 A/E Key

Electrical Signal：Wi-Fi：PCIE

RADIO

Data Stream

2*U.FL connectors

Operating Frequency

2.4GHz: 2.400-2.485GHz

5GHz: 5.150-5250GHz, 5.250-5.350GHz, 5.470-5.725GHz, 5.725-5.825GHz

Chipset

Qualcomm

SIZE

Deminsion (mm)

52 X 32 X 3.0mm

Wight (gw)

<20g

ENVIROMENTAL

Operating Voltage

3.3V

Operating Temperature Range

Operating Temperature:

QCN6224: 0°C ~ +70°C (preliminary)

QCN9274-1: -40°C ~ +85°C (preliminary)

Storage Temperature: -40 ~ +90 ºC

SOFTWARE

Driver

Windows/Linux

Chipset Offical Driver

Avaliable by requested.

POWER AND SENSITIVITY

Power – TX

Sensitivity – RX

Wi-Fi

2.4G:

CCK:_1M:19dBm

CCK:_11M:18dBm

OFDM_ 6M:19dBm

OFDM_ 54M:16dBm

11n_HT20_MCS0:17dBm

11n_HT20_MCS7:16dBm

11n_HT40_MCS0:17dBm

11n_HT40_MCS7:14dBm

11ac VHT20 MCS0:17dBm

11ac VHT20 MCS9:13dBm

11ac VHT40 MCS0:17dBm

11ac VHT40 MCS9:13dBm

11ax HE20 MCS0:17dBm

11ax HE20 MCS11:13dBm

11ax HE40 MCS0:16dBm

11ax HE40 MCS11:11dBm

11be EHT20 MCS0:16dBm

11be EHT20 MCS13:12dBm

11be EHT40 MCS0:17dBm

11be EHT40 MCS13:10dBm

5G:

OFDM_ 6M:19dBm

OFDM_ 54M:16dBm

11n_HT20_MCS0:19dBm

11n_HT20_MCS7:15dBm

11n_HT40_MCS0:18dBm

11n_HT40_MCS7:14dBm

11ac_VHT20_MCS0:18dBm

11ac_VHT20_MCS9:12dBm

11ac_VHT40_MCS0:18dBm

11ac_VHT40_MCS9:11dBm

11ac_VHT80_MCS0:18dBm

11ac_VHT80_MCS9:11dBm

11ax_HE20 _MCS0:18dBm

11ax_HE20 _MCS11:12dBm

11ax_HE40_MCS0:18dBm

11ax_HE40_MCS11:11.5dBm

11ax_HE80_MCS0:18dBm

11ax_HE80_MCS11:11dBm

11ax_HE160_MCS0:17dBm

11ax_HE160_MCS11:10dBm

11be_EHT20 _MCS0:18dBm

11be_EHT20 _MCS13:11dBm

11be_EHT40_MCS0:17dBm

11be_EHT40_MCS13:11dBm

11be_EHT80_MCS0:17dBm

11be_EHT80_MCS13:10dBm

11be_EHT160_MCS0:16dBm

11be_EHT160_MCS13:8dBm

2.4G:

CCK_11M: Max.-94dBm

OFDM_54M: Max.-80dBm

11n_HT20_MCS7: Max.-76dBm

11n_HT40_MCS7: Max.-73dBm

11ac_VHT20_MCS9: Max.-71dBm

11ac_VHT40_MCS9: Max.-63dBm

11ax_HE20_MCS11: Max.-68dBm

11ax_HE40_MCS11: Max.-60dBm

11be_EHT20_MCS13: Max.-68dBm

11be_EHT40_MCS13: Max.-60dBm

5G:

OFDM_54M: Max.-79dBm

11n_HT20_MCS7: Max.-78dBm

11n_HT40_MCS7: Max.-72dBm

11ac_VHT20_MCS8: Max.-78dBm

11ac_VHT40_MCS9: Max.-72dBm

11ac_VHT80_MCS9: Max.-59dBm

11ax_HE20_MCS11: Max.-63dBm

11ax_HE40_MCS11: Max.-62dBm

11ax_HE80_MCS11: Max.-61dBm

11ax_HE160_MCS11: Max.-61dBm

11be_EHT20_MCS13: Max.-63dBm

11be_EHT40_MCS13: Max.-62dBm

11be_EHT80_MCS13: Max.-60dBm

11be_EHT160_MCS13: Max.-60dBm

USA

EU Region

Japan

Canada

Above Certifications are under evaluation, please contact us for further information.
