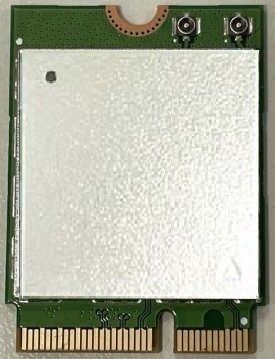

Dual Band Simultaneous 2x2 Wi-Fi 6 NGFF:
M.2 E-key modules that offer a full implementation of the Wi-Fi 6 standard (IEEE 802.11ax). The same wireless processor that is part of the FastConnect 6800 and Networking Pro architectures, the QCA6391 Chipset, is he providing the engineering power of this world leading IC Vendor in a compact solder-down module format.
The ENL-Q6391 Class operates a dual MAC for connections up to 1774.5Mbps data rate (2x2+2x2 11ax DBS). The use of OFDMA and MU-MIMO protocols, both in full UL and DL, effectively doubles the throughput performance and delivers up to 50 percent additional range compared to Wi-Fi 5 devices; even in dense networking environments and with multiple concurrent MU-MIMO links running via a single module.
All the advanced features:
Empower system design with all the actual advanced features of power-management, Target Wakeup Time (TWT), Multi-BSSID and Multi-TID, Spatial Reuse, 8 Stream Sounding, WPA3 including all optional and additional elements of it, seamless antenna sharing with LTE, LTE-U and 5G, offloading traffic for minimal host utilization also at 11ac/ax speeds, low power PCIe (w/L1 sub-state) interface, integrated close-loop power detector and more. All the wireless modes are supported, also at mixed concurrency (i.e. STA+SAP).
Separate Bluetooth 5.2 on-board:
Full clock-cycle BT management on an independent antenna chain with all the latest features of BT5.2 and more, like: BLE long range, Enhanced Attributes, LE Audio & Power, Isochronous Channels, dual eSCO and dual A2DP stream-split, ACL support for A2DP true stereo, aptX Adaptive R2 over TWS+, Super Wideband (SWB) Codec, SWB over TWS+, QHS (QC Advanced Channel Coding).
Wi-Fi Protocol
IEEE 802.11 ax/ac/a/b/g/n
Bluetooth version
Bluetooth (V5.2 LE)
Interface
Form Factor：M.2 E key 3030
Electrical Signal：Wi-Fi：PCIE / Bluetooth：UART
Data Stream
2 data streams with three on-board U.Fl. connector receptables (2 for Wi-Fi, 1 for BT)
Operating Frequency
2.400 GHz ~ 2.497 GHz (2.4 GHz ISM Band)
4.900 GHz ~ 5.845 GHz (5.0 GHz ISM Band)
*Subject to local regulations
Deminsion (mm)
30 x 32 x 3.06 (typical) mm
Operating Voltage
DC 3.3V
Operating Temperature Range
Driver
Andriod/Linux/Windows
Chipset Offical Driver
Avaliable by requested.
Power – TX
Sensitivity – RX
Wi-Fi
802.11b @11M :22.5 dBm ±2 dBm
802.11g @54Mbps : 20 dBm ±2 dBm
802.11n/ax @ MCS0 : 20.5 dBm ±2dBm
802.11n/ax @ MCS7 : 15 dBm ±2dBm
802.11a @ 54Mbps: 18.5 dBm at 54M ±2 dBm
802.11n/ac/ax @MCS0 20.5 dBm ±2dBm
802.11ac/ax @MCS0 : 17.5 dBm ±2dBm
802.11ax @ MCS0 : 16.5 dBm a ±2dBm
802.11b 11M less than -91 dBm
802.11g 54M less than -77 dBm
802.11gn HT20 MCS7 less than -77 dBm
802.11gn HT40 MCS7 less than -73.5 dBm
802.11ax VHT20 MCS9 less than -71.5 dBm
802.11ax VHT40 MCS9 less than -68 dBm
802.11a 54M less than -77 dBm
802.11n/ac/ax V/HT20 MCS7 less than -77 dBm
802.11n/ac/ax V/HT40 MCS7 less than -74.5 dBm
802.11ax V/HT20 MCS9 less than -70 dBm
802.11ax V/HT40 MCS9 less than -68 dBm
802.11ax V/HT80 MCS9 less than -62 dBm
Bluetooth
10 dbm (typical)
Sensitivity @ BER=0.01% for π/4-DQPSK (2Mbps)：-92dbm
USA
EU Region
Japan
Canada
Above Certifications are under evaluation, please contact us for further information.
