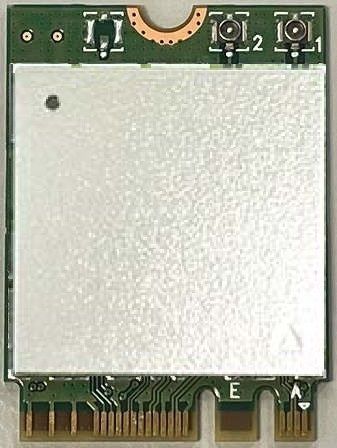

ENL-R8822CE is an 802.11ac/a/b/g/n Dual -Band WiFi+Bluetooth M.2 (Key A,E) module (WiFi 5) based on Realtek RTL8822CE chipset, It supports Multiple drivers (Android/ Windows/ Linux) for various platform. This module support MU-MIMO two steams on dual band 2.4GHz or 5GHz operating and incorporates the latest Bluetooth 5.0, the data rate up to 867Mbps on ac mode.
The ENL-R8822CE is using highly integrated single-chip MIMO (Multiple In, Multiple Out) wireless local area network (WLAN) RTL8822CE solution to let users enjoy the high digital content through the latest wireless technology without using cables and cords. RTL8822CE combines a WLAN MAC, a 2T2R capable WLAN baseband, and RF in a single chip. ENL-R8822CE module enables a high performance, cost effective, low power, compact solution that easily fits in the PCI Express and USB M.2 2230 A-E Key module which is Incorporated with advanced security encryption WEP, WPA, WPA2, WPS,WPA3, and 802.1x, it will prevent user’s devices from malicious attacks.
The ENL-R8822CE is with multi-OS supporting from chipset vendors, not using the open source, it can ensure supporting available.
Wi-Fi Protocol
IEEE 802.11 ac/a/b/g/n
Bluetooth version
Bluetooth V5.0
Interface
Form Factor : M.2 A-E key 2230
Electrical Signal: Wi-Fi : PCIE / Bluetooth : USB
Data Stream
2 data streams with 2 HMF4 RF connectors
Operating Frequency
2.400 GHz ~ 2.497 GHz (2.4GHz ISM Band)
4.900 GHz ~ 5.845 GHz (5.0GHz ISM Band)
*Subject to local regulations
Deminsion (mm)
30.00(±0.15) x 22.00(±0.15) mm
Operating Voltage
DC 3.3V
Operating Temperature Range
0~ 70°C
Driver
Andriod/Linux/Windows
Chipset Offical Driver
Avaliable by requested.
Power – TX
Sensitivity – RX
Wi-Fi
802.11b @11Mbps : 18 dBm ± 2 dB
802.11g @54Mbps : 16 dBm ± 2 dB
802.1gn @MCS7 : 16 dBm ± 2 dB
802.11a @54Mpcs : 17 dBm ± 2 dB
802.11gn @MCS7 : 16dBm ± 2 dB
802.11ac @MCS9 : 14 dBm ± 2 dB
802.11a @54Mbps :-68dBm
802.11b @11Mbps: -85dBm
802.11g @54Mbps: -74dBm
802.11gn@MCS7:-70dBm
802.11a @54Mbps :-68dBm
802.11an @MCS7 :-68dBm
802.11ac @MCS9 : -54 dBm
Bluetooth
0 ≤ Output Power ≤ +6; Class I Device
< 0.1% BER at -70dBm
USA
EU Region
Japan
Canada
Above Certifications are under evaluation, please contact us for further information.
