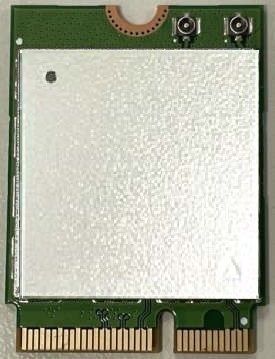

ENL-Q6391 is a real dual band dual concurrent WiFi 6+Bluetooth 5.1 M.2 2230 (KEY E) Module, 802.11ax allow efficient allocation of low data-rate connections, improve the battery life of IoT sensors, and extend the range of Wi-Fi signals. ENL-Q6391 M.2 module brings steady, high-speed Wi-Fi connectivity for Remote control, Smart manufacturing, shop, home, TV etc. The new 802.11ax standard with its unique features such as OFDMA, 1024QAM, Target Wake Time (TWT). 802.11ax (WiFi 6) enables smooth streaming of high-resolution videos, fewer dropped connections and faster connections farther away from the router and in dense environments.
ENL-Q6391 M.2 2230 (KEY E) module can support Multi-User MIMO (MU-MIMO) technology to increase channel capacity when simultaneously servicing multiple devices using the same frequency chunks and can accomplish up to speed of 1774.5Mbps (2x2 80MHz 11ax + 2x2 40MHz 11ax DBS). Bluetooth 5 features including Low-Energy 2 Mbps and Low-Energy Long Range. Furthermore the included PCIe interface for Wi- Fi, UART/PCM interface for Bluetooth.
ENL-Q6391 is a with cost advantage and low-power consumption module which has all of the Wi-Fi and Bluetooth functionalities. The highly integrated module makes the possibilities of web browsing, VoIP, Bluetooth headsets applications. With seamless roaming capabilities and advanced security, also could interact with different vendors’ 802.11a/b/g/n/ac/ax 2x2 Access Points in the wireless LAN.
Wi-Fi Protocol
IEEE 802.11 ax/ac/a/b/g/n
Interface
Form Factor : M.2 E key 2230
Electrical Signal: Wi-Fi : PCIE / Bluetooth : UART
Data Stream
2 data streams with 2 HMF4 RF connectors
Operating Frequency
2.400 GHz ~ 2.497 GHz (2.4 GHz ISM Band)
4.900 GHz ~ 5.845 GHz (5.0 GHz ISM Band)
*Subject to local regulations
Deminsion (mm)
22 x 30 x 2.3 (typical) mm
Operating Voltage
DC 3.3V
Operating Temperature Range
-30°C to 85°C
Driver
Andriod/Linux/Windows
Chipset Offical Driver
Avaliable by requested.
Power – TX
Sensitivity – RX
Wi-Fi
02.11b @11Mbps: 17 dBm ± 1.5 dB
802.11g @54Mbps: 15 dBm ± 1.5 dB
802.11n @MCS7: 14 dBm ± 1.5 dB
802.11ax @MCS9: 13 dBm ± 1.5 dB
802.11ax@MCS11: 11 dBm ± 1.5 dB
802.11a @54Mbps: 14 dBm ± 1.5 dB
802.11n @MCS7: 13 dBm ± 1.5 dB
802.11ac @MCS9: 12 dBm ± 1.5 dB
802.11ax @MCS11: 11 dBm ± 1.5 dB
11b@11Mbps : -85 dBm
11g@54Mbps : -71 dBm
11gn@MCS7 : -69 dBm
11ax,40MHz@MCS11 : -57 dBm
11a@ 54Mbps : -73 dBm
11an@MCS7 : -70 dBm
11ac@MCS8, NSS1 @ -67 dBm
11ac@MCS9, NSS1 @ -61 dBm
11ax@MCS11 @ -59 dBm
Bluetooth
10 dbm (typical)
Sensitivity @ BER=0.01% for π/4-DQPSK (2Mbps):-92dbm
USA
EU Region
Japan
Canada
Above Certifications are under evaluation, please contact us for further information.
