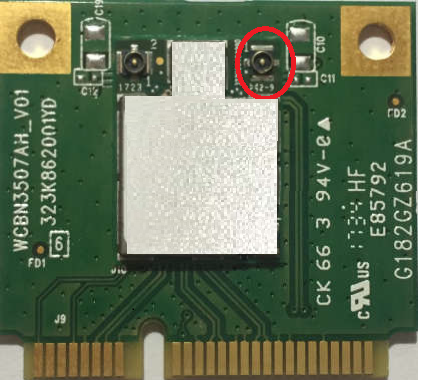

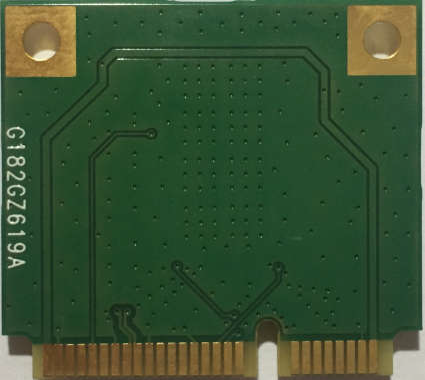

ENL-Q6174AH(QCNFA324A) is a single-die wireless local area network (WLAN) and Bluetooth combo solution to support 2x2 multi-user multiple input with two spatial streams IEEE802.11ac/a/b/g/n WLAN standards and Bluetooth 5.0, designed to deliver superior integration of WLAN/Bluetooth and low energy technology.
ENL-Q6174AH(QCNFA324A) is dual band on 2.4GHz/5GHz and incorporates the latest Bluetooth 5.0. The download speed are 300Mbps on N networks and 867Mbps on AC network. ENL-Q6174AH(QCNFA324A) integrates the Bluetooth transmission technology for voice and data transfers between devices in a short distance. ENL-Q6174AH(QCNFA324A) is designed properly for any wireless enabled devices with Half Mini PCIe slot.
Wi-Fi Protocol
IEEE 802.11 ac/a/b/g/n
Bluetooth version
Bluetooth V5.0
Interface
Form Factor : Half Size Mini PCIE card
Electrical Signal: Wi-Fi : PCIE / Bluetooth : USB
Data Stream
2 data streams with 2 HMF4 RF connectors
Operating Frequency
2.412 GHz ~ 2.480 GHz
5.150 GHz ~ 5.850 GHz
*Subject to local regulations
Deminsion (mm)
30.00(±0.3) x 26.8(±0.3) mm
Operating Voltage
DC 3.3V
Operating Temperature Range
Driver
Andriod/Linux/Windows
Chipset Offical Driver
Avaliable by requested.
Power – TX
Sensitivity – RX
Wi-Fi
802.11b @11Mbps : 18 dBm ± 2 dB
802.11g @54Mbps : 16 dBm ± 2 dB
802.1gn @MCS7 : 16 dBm ± 2 dB
802.11an @MCS0 : 12.5 dBm ± 2 dB
802.11an @MCS7 : 10dBm ± 2 dB
802.11ac @MCS7 : 10 dBm ± 2 dB
802.11b:
Less than IEEE Standard -76dBm
802.11g / 802.11a:
Less than IEEE Standard -82dBm @ 6Mpbs
Less than IEEE Standard -65dBm @54Mbps
802.11n:
HT20:
Less than IEEE Standard -82dBm @ MCS0
Less than IEEE Standard -64dBm @ MCS7
HT40:
Less than IEEE Standard -79dBm @ MCS0
Less than IEEE Standard -61dBm @ MCS7
HT80:
Less than IEEE Standard -76dBm @ MCS0
Less than IEEE Standard -51dBm @ MCS7
Bluetooth
0 ≤ Output Power ≤ +5; Class 1 Device
< 0.1% BER at -70dBm
- This module is with "World-Wide Certification" including FCC/CE/IC/TELEC/KCC...etc, please contact us for further information.
- Antenna Filings are available now.
