ENL-M7925M2

Name: ENL-M7925M2
Brand: ENL-M7925M2
SKU: MT7925B22M
Availability: InStock

WiFi7 11be 2Tx2R + BT5.4

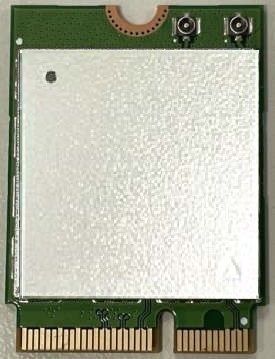

M.2 2230 KeyE WLAN Combo Module

Model No.

MT7925B22M

Chipset Vendor

MTK

Chipset part no.

MT7925B22M

Electrical Interface

WLAN@PCIE/BT@USB

OS support

Linux/Windows

TAG BY

#PICE #Commercail Grade #WiFi 7 #M.2 card #Andriod #Linux #Windows #2*2 #General Purpose Wireless Modules

ENL-M7925M2 module is a highly integrated module that features a low-power 2x2 11a/b/g/n/ac/ax/be dual-band Wi-Fi subsystem and a Bluetooth v5.4 subsystem, offering feature-rich wireless connectivity at high standards, and delivering reliable, cost-effective throughput from an extended distance.

Optimized RF architecture and baseband algorithms provide superb performance and low power consumption. Intelligent MAC design deploys a high-efficient offload engine and hardware data processing accelerators that fully offloads Wi-Fi tasks of the host processor. ENL-M7925M2 module is designed to support standard based features in the areas of security, quality of service and international regulations, giving end users the greatest performance any time and in any circumstance.

STANDARD

Wi-Fi Protocol

IEEE 802.11 be/ax/ac/a/b/g/n

Bluetooth version

Bluetooth 5.4

Interface

Form Factor：M.2 2230-E

RADIO

Data Stream

Antenna – I-PEX MHF4 Connector 2x2

Operating Frequency

2400~2484MHz (2.4G band)

5.15~5.35GHz, 5.47~5.725GHz, 5.725~5.85GHz, 5.85~5.895GHz (5G band)

5.925~7.125GHz (6G band)

Chipset

MTK

SIZE

Deminsion (mm)

22mm x 30mm x 2.50mm

Wight (gw)

2.5g

ENVIROMENTAL

Operating Voltage

3.3V

Operating Temperature Range

Operating Temperature: -10ºC to 70ºC

Storage Temperature: -40ºC to 85ºC

SOFTWARE

Driver

Linux/Windows

Chipset Offical Driver

Avaliable by requested.

POWER AND SENSITIVITY

Power – TX

Sensitivity – RX

Wi-Fi

2.4GHz Band (+/-1.0dBm):

CCK:_11M: 22 dBm

OFDM_ 54M: 19 dBm

11n_HT20_MCS7: 19 dBm

11n_HT40_MCS7: 19 dBm

11ax_HE20_MCS0: 21.5 dBm

11ax_HE20_MCS11: 17 dBm

11ax_HE40_MCS0: 20 dBm

11ax_HE40_MCS11: 16.5 dBm

11ax_EHT20_MCS0: 21.5 dBm

11be_EHT20_MCS13: 15.5 dBm

11ax_EHT40_MCS0: 20 dBm

11be_EHT40_MCS13: 15.5 dBm

5GHz Band (+/-1.0dBm):

OFDM_ 54M: 18 dBm

11n_HT20_MCS7: 18.5 dBm

11n_HT40_MCS7: 18 dBm

11ac_VHT20_MCS0: 22 dBm

11ac_VHT20_MCS9: 17.5 dBm

11ac_VHT40_MCS0: 21 dBm

11ac_VHT40_MCS9: 17 dBm

11ac_VHT80_MCS0: 20.5 dBm

11ac_VHT80_MCS9: 17 dBm

11ac_VHT160_MCS0: 18 dBm

11ac_VHT160_MCS9: 15.5 dBm

11ax_HE20_MCS0: 22 dBm

11ax_HE40_MCS0: 21 dBm

11ax_HE20/HE40_MCS11: 16.5 dBm

11ax_HE80_MCS0: 20.5 dBm

11ax_HE80_MCS11: 15.5 dBm

11ax_HE160_MCS0: 18 dBm

11ax_HE160_MCS11: 14 dBm

11ax_EHT20_MCS0: 22 dBm

11ax_EHT40_MCS0: 21 dBm

11ax_EHT20/EHT40_MCS13: 15 dBm

11be_EHT80_MCS0: 20.5 dBm

11be_EHT80_MCS13: 13.5 dBm

11be_EHT160_MCS0: 18 dBm

11be_EHT160_MCS13: 11.5 dBm

6GHz (5950 to 6500 MHz): (+/-1.0dBm)

11ax_HE20_MCS0: 21 dBm

11ax_HE40_MCS0: 20 dBm

11ax_HE20/HE40_MCS11: 15.5 dBm

11ax_HE80_MCS0: 19.5 dBm

11ax_HE80_MCS11: 14.5dBm

11ax_HE160_MCS0: 17 dBm

11ax_HE160_MCS11: 13 dBm

11ax_EHT20_MCS0: 21 dBm

11ax_EHT40_MCS0: 20 dBm

11ax_EHT20/EHT40_MCS13: 14 dBm

11be_EHT80_MCS0: 19.5 dBm

11be_EHT80_MCS13: 12.5 dBm

11be_EHT160_MCS0: 17 dBm

11be_EHT160_MCS13: 10.5 dBm

6GHz (6501 to 7125 MHz): (+/-1.0dBm)

11ax_HE20_MCS0: 20 dBm

11ax_HE40_MCS0: 19 dBm

11ax_HE20/HE40_MCS11: 14.5 dBm

11ax_HE80_MCS0: 18.5 dBm

11ax_HE80_MCS11: 13.5dBm

11ax_HE160_MCS0: 16 dBm

11ax_HE160_MCS11: 12 dBm

11ax_EHT20_MCS0: 20 dBm

11ax_EHT40_MCS0: 19 dBm

11ax_EHT20/EHT40_MCS13: 13 dBm

11be_EHT80_MCS0: 18.5 dBm

11be_EHT80_MCS13: 11.5 dBm

11be_EHT160_MCS0: 16 dBm

11be_EHT160_MCS13: 9.5 dBm

2.4GHz: @PER<=10%.

CCK_11M: <= -87.5 dBm @PER<=8%

OFDM_54M: <= -75 dBm

11n_HT20_MCS7<= -73.5 dBm

11n_HT40_MCS7<= -70 dBm

11ax_HE20_MCS11<= -63 dBm

11ax_HE40_MCS11<= -59.5 dBm

11be_EHT20_MCS13<= -56.5 dBm

11be_EHT40_MCS13<= -54 dBm

5GHz: @PER<=10%.

OFDM_54M: <= -75 dBm

11ac/n_BW20_MCS7<= -73 dBm

11ac/n_BW40_MCS7<= -70 dBm

11ac_VHT80_MCS9<= -61 dBm

11ac_VHT160_MCS9<= -57 dBm

11ax_HE20_MCS11<= -63 dBm

11ax_HE40_MCS11<= -59.5 dBm

11ax_HE80_MCS11<= -56 dBm

11ax_HE160_MCS11<= -53 dBm

11be_EHT20_MCS13<= -56.5 dBm

11be_EHT40_MCS13<= -53.5 dBm

11be_EHT80_MCS13<= -50 dBm

11be_EHT160_MCS13<= -46.5 dBm

6GHz: @PER<=10%.

11ax_HE20_MCS11<= -63 dBm

11ax_HE40_MCS11<= -59.5 dBm

11ax_HE80_MCS11<= -56 dBm

11ax_HE160_MCS11<= -53 dBm

11be_EHT20_MCS13<= -56.5 dBm

11be_EHT40_MCS13<= -53.5 dBm

11be_EHT80_MCS13<= -50 dBm

11be_EHT160_MCS13<= -46.5 dBm

Bluetooth

BT(+/-1.5dBm):

EDR: 7 dBm, BLE: 10 dBm; BDR: 10 dBm

1DH5: -90 dBm @ BER≤0.1% ;

2DH5: -89.5 dBm @ BER≤0.01%;

3DH5: -84 dBm @ BER≤0.01%;

1LE: -92 dBm @ PER≤30.8%

USA

EU Region

Japan

Canada

Above Certifications are under evaluation, please contact us for further information.
