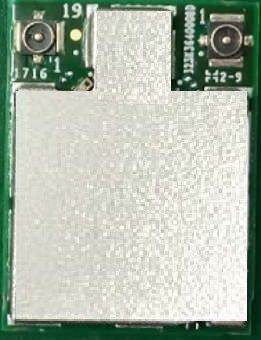

ENL-R8852BELGA

Name: ENL-R8852BELGA
Brand: ENL-R8852BELGA
SKU: 6252C-PUB
Availability: InStock

Wi-Fi6 11ax Dual-band2T2R+
Bluetooth 5.2 M.2 1216 LGA Combo Module

Model No.

6252C-PUB

Chipset Vendor

Realtek

Chipset part no.

RTL-8852BE

Electrical Interface

Wi-Fi @PCIE/BT@USB

OS support

Linux/Andriod/Windows

TAG BY

#PICE #Commercail Grade #Bluetooth #WiFi BT Combo #WiFi 6 #Solder mount module #Andriod #Linux #Windows #2*2 #General Purpose Wireless Modules

The Enli ENL-R8852BELGA(6252C-PUB) is a highly integrated single-chip that support 2-stream 802. 11ax solutions with Multi-user MIMO (Multiple-Input, Multiple-Output) with Wireless LAN (WLAN) PCI Express network interface controller with integrated Bluetooth 5 USB interface controller. It combines a WLAN MAC, a2T2R capable WLAN baseband, and RF in a single chip. The RTL8852BE provides a complete solution for a high-performance integrated wireless and Bluetooth device

STANDARD

Wi-Fi Protocol

IEEE 802.11 ax/ac/a/b/g/n

Bluetooth version

Bluetooth 5.3

Interface

Form Factor：M.2 1620 LGA Type

Electrical Signal：Wi-Fi：PCIE / Bluetooth：USB

RADIO

Data Stream

Dual I-PEX Antenna Connectors

Operating Frequency

2.400 GHz ~ 2.4835 GHz (2.4G band)

5.15 GHz ~ 5.850 GHz (5G band)

Chipset

Realtek

SIZE

Deminsion (mm)

L x W : 16 x 12 (±0.2) mm H: 1.9 (±0.2) mm

Wight (gw)

0.84(±0.1)g

ENVIROMENTAL

Operating Voltage

3.3V

Operating Temperature Range

Operating Temperature: -10ºC to 70ºC

Storage Temperature: -55°C to 85°C

SOFTWARE

Driver

Windows/Linux/Andriod

Chipset Offical Driver

Avaliable by requested.

POWER AND SENSITIVITY

Power – TX

Sensitivity – RX

Wi-Fi

(2.4GHz):

802.11b /11Mbps: 19dBm ± 2 dB

802.11g /54Mbps: 18dBm ± 2 dB

802.11n /MCS7: 17dBm ± 2 dB

802.11ax HE20 MCS11: 13dBm ± 2 dB

802.11ax HE40 MCS11: 13dBm ± 2 dB

(5GHz):

802.11a /54Mbps: 18 dBm ± 2 dB

802.11n /MCS7: 17 dBm ± 2 dB

802.11ac VHT20 MCS8: 16 dBm ± 2 dB

802.11ac VHT40 MCS9: 15 dBm ± 2 dB

802.11ac VHT80 MCS9: 15 dBm ± 2 dB

802.11ax HE20 MCS11: 13 dBm ± 2 dB

(2.4GHz)@10% PER:

802.11g, 20MHz: 6Mbps @ -90 dBm

802.11g, 20MHz: 54Mbps @ -71 dBm

802.11n, 20MHz: MCS=0 @ -90 dBm

802.11n, 20MHz: MCS=7 @ -69 dBm

802.11n, 40MHz: MCS=0 @ -87 dBm

802.11n,40MHz: MCS=7 @ -66 dBm

802.11ax,40MHz: MCS=0 @ -90 dBm

802.11ax,40MHz: MCS=11 @ -60 dBm

802.11ax,40MHz: MCS=0 @ -87 dBm

802.11ax,40MHz: MCS=11 @ -57 dBm

(5GHz)@10% PER:

802.11a,20MHz: 6Mbps @ -90 dBm

802.11a,20MHz: 54Mbps @ -71 dBm

802.11n,20MHz: MCS=0 @ -90 dBm

802.11n,20MHz: MCS=7 @ -69 dBm

802.11ac,40MHz: MCS=0 @ -87 dBm

802.11ac,40MHz: MCS=7 @ -66 dBm

802.11ac,40MHz: MCS=0 @ -90 dBm

802.11ac,40MHz: MCS=8 @ -64 dBm

802.11ac,40MHz: MCS=0 @ -87 dBm

802.11ac,40MHz: MCS=9 @ -59 dBm

802.11ac,40MHz: MCS=0 @ -84 dBm

802.11ac,40MHz: MCS=9 @ -56 dBm

802.11ax,40MHz: MCS=0 @ -90 dBm

802.11ax,40MHz: MCS=11 @ -60 dBm

802.11ax,40MHz: MCS=0 @ -87 dBm

802.11ax,40MHz: MCS=11 @ -57 dBm

802.11ax,20MHz: MCS=0 @ -84 dBm

802.11ax,20MHz: MCS=11 @ -54 dBm

Bluetooth

BDR, EDR, BLE: 5dBm

Sensitivity @ BER=0.1%:

GFSK (1Mbps) @ -90dBm

Sensitivity @ BER=0.01%:

π/4-DQPSK (2Mbps) @ -88dBm

8DPSK (3Mbps) @ -85dBm

Sensitivity @ BER=30.8%:

LE (1Mbps) @-93dBm

2LE (2Mbps) @-90dBm

USA

EU Region

Japan

Canada

Above Certifications are under evaluation, please contact us for further information.
