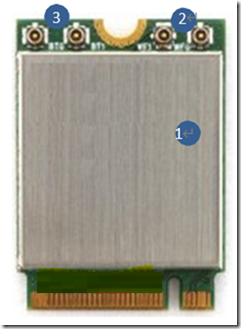

ENL-M7921AUNM2B (AWM27921BU)
is a WiFi 6E 2x2 dual-band WLAN and Bluetooth v5.2 M.2 module.
- IEEE 802.11 a/b/g/n/ac/ax compliant
- Support 20 MHz, 40 MHz, 80 MHz bandwidth in 2.4 GHz, 5 GHz, 6GHz band
- Support Bluetooth 5.2
- Dual-band 2T2R mode
- Data rate up to 800 Mbps with USB3.0
- Support STBC, LDPC, TX Beamforming, and RX Beamforming
- Bluetooth v5.2 with BLE (BT low energy)
- Support BT/BLE dual mode
- Support BT/Wi-Fi coexistence
Wi-Fi Protocol
IEEE 802.11 ax/ac/a/b/g/n
Bluetooth version
Bluetooth 5.2
Interface
Form Factor：M.2 B-key
Electrical Signal：Wi-Fi：USB / Bluetooth：USB
Data Stream
2x IPEX (Wi-Fi)
2x IPEX (BT)
Deminsion (mm)
22 x 30 x 2.8mm
Operating Temperature Range
Operating Temperature: -25°C - 75°C
Driver
Windows/Linux/Andriod
Chipset Offical Driver
Avaliable by requested.
Power – TX
Sensitivity – RX
Wi-Fi
(2.4GHz):
802.11b /1Mbps: 17dBm
802.11b /11Mbps: 17dBm
802.11g /6Mbps: 16.5dBm
802.11g /54Mbps: 15.5dBm
VHT20-MCS0 ;15dbm
VHT20-MCS9 ;11.5dbm
VHT40-MCS0;15dbm
VHT40-MCS7;12dbm
HE20-MCS0;15.5dbm
HE20-MCS11;11.5dbm
HE40-MCS0;15.5dbm
HE40-MCS11;12.5dbm
(5GHz):
802.11a /6Mbps: 16.5dBm
802.11a /54Mbps: 14.5dBm
VHT20-MCS0;16dbm
VHT20-MCS9;12.5dbm
VHT40-MCS0;16dbm
VHT40-MCS9;12.5dbm
(5 GHz / 6 GHz)
HE20-MCS0;15.5dbm
HE20-MCS11;10.5dbm
HE40-MCS0;15.5dbm
HE40-MCS11;10.5dbm
HE80-MCS0;15.5dbm
HE80-MCS11;10dbm
(2.4GHz)
802.11b /1Mbps: -90dBm
802.11b /11Mbps: -86dBm
802.11g /6Mbps: -90dBm
802.11g /54Mbps: -72Bm
VHT20-MCS0 ;-89dbm
VHT20-MCS9 ;-71dbm
VHT40-MCS0;-86dbm
VHT40-MCS7;-68dbm
HE20-MCS0;-89dbm
HE20-MCS11;-58dbm
HE40-MCS0;-85dbm
HE40-MCS11;-55dbm
(5GHz):
802.11a /6Mbps: -90dBm
802.11a /54Mbps: -72dBm
VHT20-MCS0;-88dbm
VHT20-MCS9;-70dbm
VHT40-MCS0;-86dbm
VHT40-MCS9;-67dbm
(5 GHz / 6 GHz)
HE20-MCS0;-89dbm
HE20-MCS11;-56dbm
HE40-MCS0;-85dbm
HE40-MCS11;-53dbm
HE80-MCS0;-89dbm
HE80-MCS11;-49dbm
USA
EU Region
Japan
Canada
Above Certifications are under evaluation, please contact us for further information.
