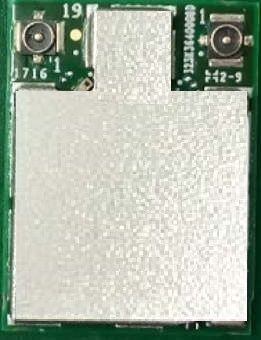

ENL-Q6174AM2LGA is 11ac/a/b/g/n 2T2R WiFi+Bluetooth 5.0 M.2 LGA Type 1216 Module. It is a fully Wi-Fi and Bluetooth functionalities module with seamless roaming capabilities and advance security. 802.11ac allow efficient allocation of low data-rate connections, improve the battery life of IoT sensors, and extend the range of Wi-Fi signals. It can support Multi-User MIMO (MU-MIMO) technology to increase channel capacity.
It provides a small form-factor solution with minimal external components to drive down cost for handheld device flexibility in size, form, and function. The wireless module has been designed with the stringent power consumption requirements of portable devices in mind.
Different with Broadcom solution, ENL-Q6174AM2LGA is with QUALCOMM solution except supported by Linux also with Windows 10/8/7, provide your more flexibility using one solution at different OS.
Wi-Fi Protocol
IEEE 802.11 ac/a/b/g/n
Bluetooth version
Bluetooth V5.0
Interface
Form Factor : M.2(NGFF) LGA Type 1216
Electrical Signal: Wi-Fi : PCIE / Bluetooth : USB
Data Stream
2 data streams with 2 HMF4 RF connectors
Operating Frequency
2.412 GHz ~ 2.4835 GHz
5.150 GHz ~ 5.850 GHz
*Subject to local regulations
Deminsion (mm)
12.00(±0.1) x 16.00(±0.1) mm
Operating Voltage
DC 3.3V
Operating Temperature Range
Driver
Andriod/Linux/Windows
Chipset Offical Driver
Avaliable by requested.
Power – TX
Sensitivity – RX
Wi-Fi
802.11b @11Mbps : 18 dBm ± 2 dB
802.11g @54Mbps : 16 dBm ± 2 dB
802.1gn @MCS7 : 16 dBm ± 2 dB
802.11an @MCS0 : 12.5 dBm ± 2 dB
802.11an @MCS7 : 10dBm ± 2 dB
802.11ac @MCS7 : 10 dBm ± 2 dB
802.11b:
Less than IEEE Standard -76dBm
802.11g / 802.11a:
Less than IEEE Standard -82dBm @ 6Mpbs
Less than IEEE Standard -65dBm @54Mbps
802.11n:
HT20:
Less than IEEE Standard -82dBm @ MCS0
Less than IEEE Standard -64dBm @ MCS7
HT40:
Less than IEEE Standard -79dBm @ MCS0
Less than IEEE Standard -61dBm @ MCS7
HT80:
Less than IEEE Standard -76dBm @ MCS0
Less than IEEE Standard -51dBm @ MCS7
Bluetooth
0 ≤ Output Power ≤ +5; Class 1 Device
< 0.1% BER at -70dBm
- This module is with "World-Wide Certification" including FCC/CE/IC/TELEC/KCC...etc., please contact us for further information.
- Antenna Filings are available now.
